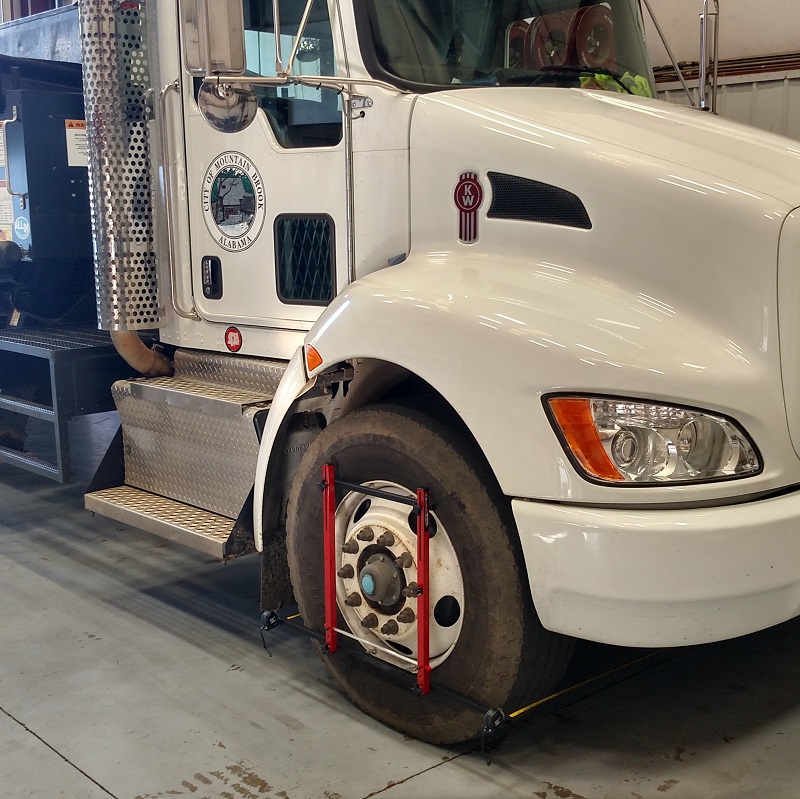

Commercial Wheel Alignment Kit for Medium-Duty Trucks, RVs & Transit Buses
Commercial wheel alignment kit for medium-duty trucks, RVs, and transit buses—measure toe with 100% accuracy and measure caster/camber within 1/10th degree, with no level surface required.
Professional-grade wheel alignment system designed for mid-level commercial trucks, RVs, transit buses, mobile service operations, and independent maintenance programs. Engineered to provide repeatable, verifiable alignment measurements without software subscriptions, calibration requirements, or outsourced alignment services.
What This System Measures
- Toe measurement (100% toe accuracy)
- Caster measurement (within 1/10th of a degree)
- Camber measurement (within 1/10th of a degree)
System Capabilities
- No perfectly level surface required
- Designed for 16″–24.5″ wheel range (Steel and Aluminum)
- Field-ready for mobile technicians
- Supports preventative maintenance inspections
- Used by mobile military units and mobile mechanics
- Utilized by major RV service operations for customer maintenance and seasonal service programs
System Overview

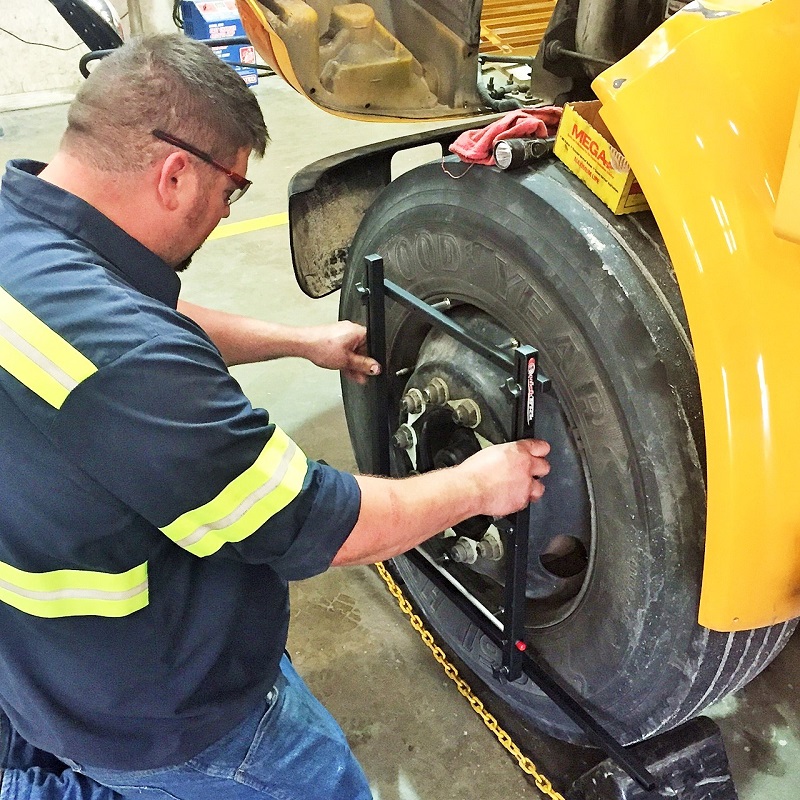

This heavy-duty alignment kit standardizes measurement procedures for mid-level commercial vehicles and specialty applications. The system allows technicians to verify correct wheel alignment consistently without dependency on alignment racks or third-party facilities.

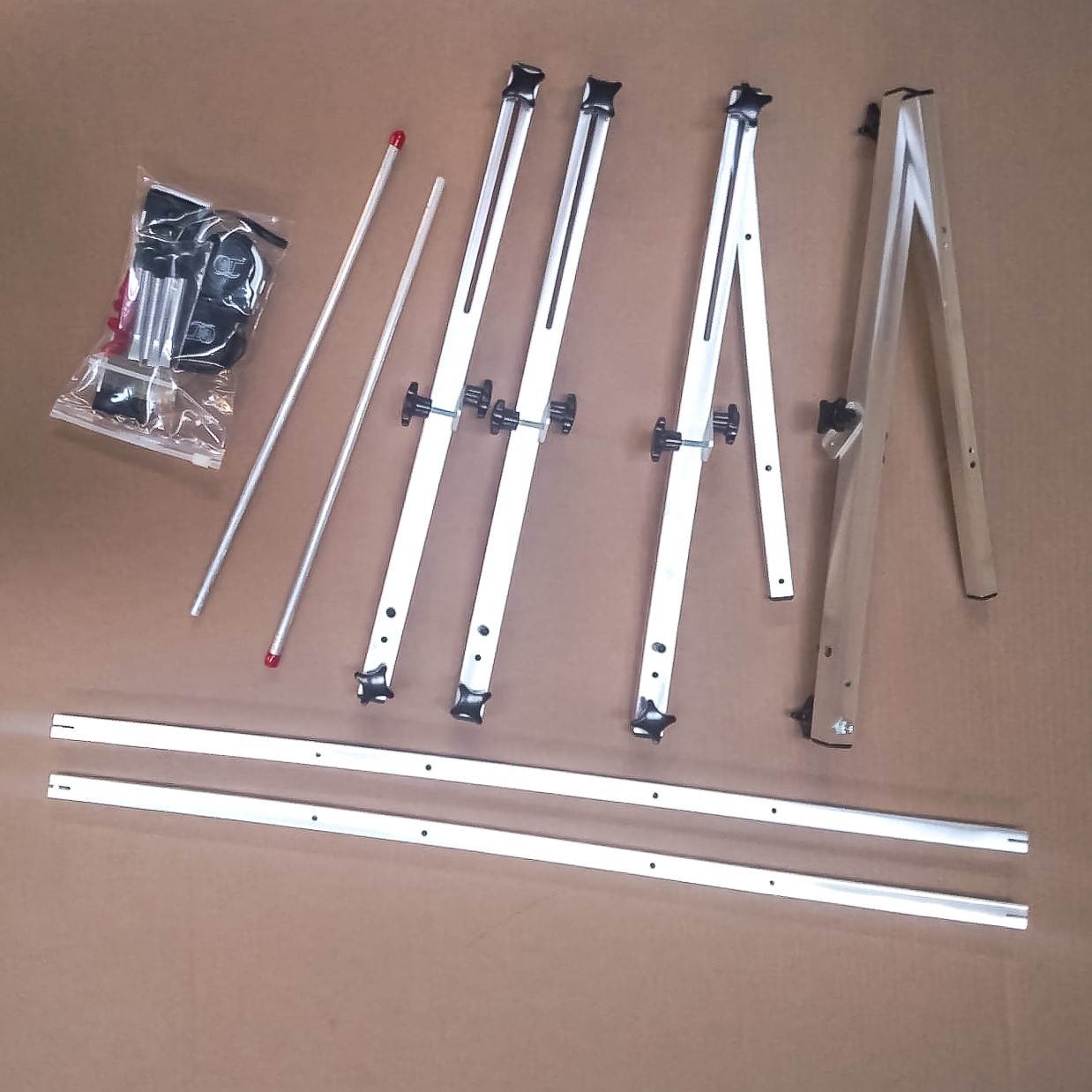

Included Components
- 90080 HD Wheel Alignment Kit (16–24″ wheel range) – 1
- Pin Attachment Set (Set of 8) Aluminum Wheels
- Magnet Attachment Set (Set of 8) Steel Wheels
- Pin Extension Set (Set of 8) – 1
- Digital Caster/Camber Gauge – 1
- Printed Instructions
- Technical Support Access
Frequently Asked Questions
Is a perfectly level surface required to perform an alignment?
No. This system does not require a perfectly level floor. The measurement process compensates for typical shop and field surface conditions, making it suitable for mobile technicians and on-site fleet maintenance.
What types of vehicles can this system align?
This system is designed for mid-level trucks, RVs, transit buses, and similar commercial vehicles within the 16″–24.5″ wheel range. It is commonly used by independent operators, mobile military mechanics, service facilities, and large RV maintenance programs.
How accurate is the toe measurement?
Toe measurements provide 100% direct mechanical verification when procedures are followed correctly. The system allows repeatable measurement without reliance on electronic rack calibration.
How accurate are caster and camber readings?
Caster and camber measurements are accurate within 1/10th of a degree using the included Caster/Camber Gauge.
Can this system be used in the field?
Yes. The system is designed for mobile use and has been utilized by mobile military units, mobile service technicians, and remote fleet maintenance teams.
Does this system require software subscriptions or ongoing calibration?
No. The system operates mechanically and does not require subscription software, electronic calibration services, or third-party alignment rack integration.
Built for Long-Term Operational Reliability
Alignment Simple Solutions, LLC has supported alignment measurement programs for over 15 years. All systems are manufactured in the United States and built for long-term service durability in demanding commercial environments.
Our alignment tools are engineered to provide consistent mechanical verification without dependency on software subscriptions, recurring calibration fees, or third-party service providers.
