Product Overview
The Kingpin Coupling Alignment Tool is a purpose-built mechanical diagnostic tool designed to verify the lateral centering and squareness of a trailer’s coupling kingpin relative to the trailer body.
In fleet and commercial trailer service environments, kingpin position is often assumed rather than verified. This tool provides a fast, repeatable method to visually confirm whether the coupling point itself is contributing to tracking, handling, or alignment-related concerns before additional diagnostics are performed.
By allowing technicians to measure from outside the trailer, the tool improves efficiency, reduces physical strain, and supports safer inspection workflows without introducing electronics, calibration requirements, or software dependencies.
Operational Use
This tool is used as a preliminary verification step in trailer inspection and diagnostic workflows to confirm whether the coupling kingpin is laterally centered relative to the trailer body.
By providing a clear side-to-side measurement reference from the kingpin to the trailer structure, technicians can quickly determine whether the coupling point itself should be ruled in or ruled out as a contributing factor before proceeding with axle, tracking, or alignment evaluations.
The process is entirely mechanical and visual, allowing for consistent use across fleet maintenance, trailer service facilities, and inspection environments without additional setup or calibration.
Operational Advantages
The Kingpin Coupling Alignment Tool allows technicians to confirm kingpin position quickly and confidently without working beneath the trailer, reducing physical strain and improving safety during routine inspections.
Its mechanical design eliminates reliance on electronics, lasers, or software, making it well-suited for daily use in demanding shop environments where simplicity, durability, and repeatability are critical.
By verifying the coupling point early in the diagnostic process, the tool helps prevent unnecessary adjustments or repairs elsewhere in the alignment system, supporting more efficient troubleshooting and maintenance decisions.
Compliance & Safety Considerations
This tool supports professional inspection and diagnostic workflows by allowing kingpin alignment verification to be performed from outside the trailer, reducing the need for technicians to work beneath suspended equipment.
Any detected kingpin offset should be evaluated in accordance with applicable fleet standards and regulatory guidelines before corrective action is taken. This tool is intended to assist in identifying potential alignment contributors, not to replace established compliance or inspection procedures.
Build Quality & Construction
The Kingpin Coupling Alignment Tool is constructed from heavy-duty aluminum components selected for rigidity, stability, and long-term use in commercial service environments.

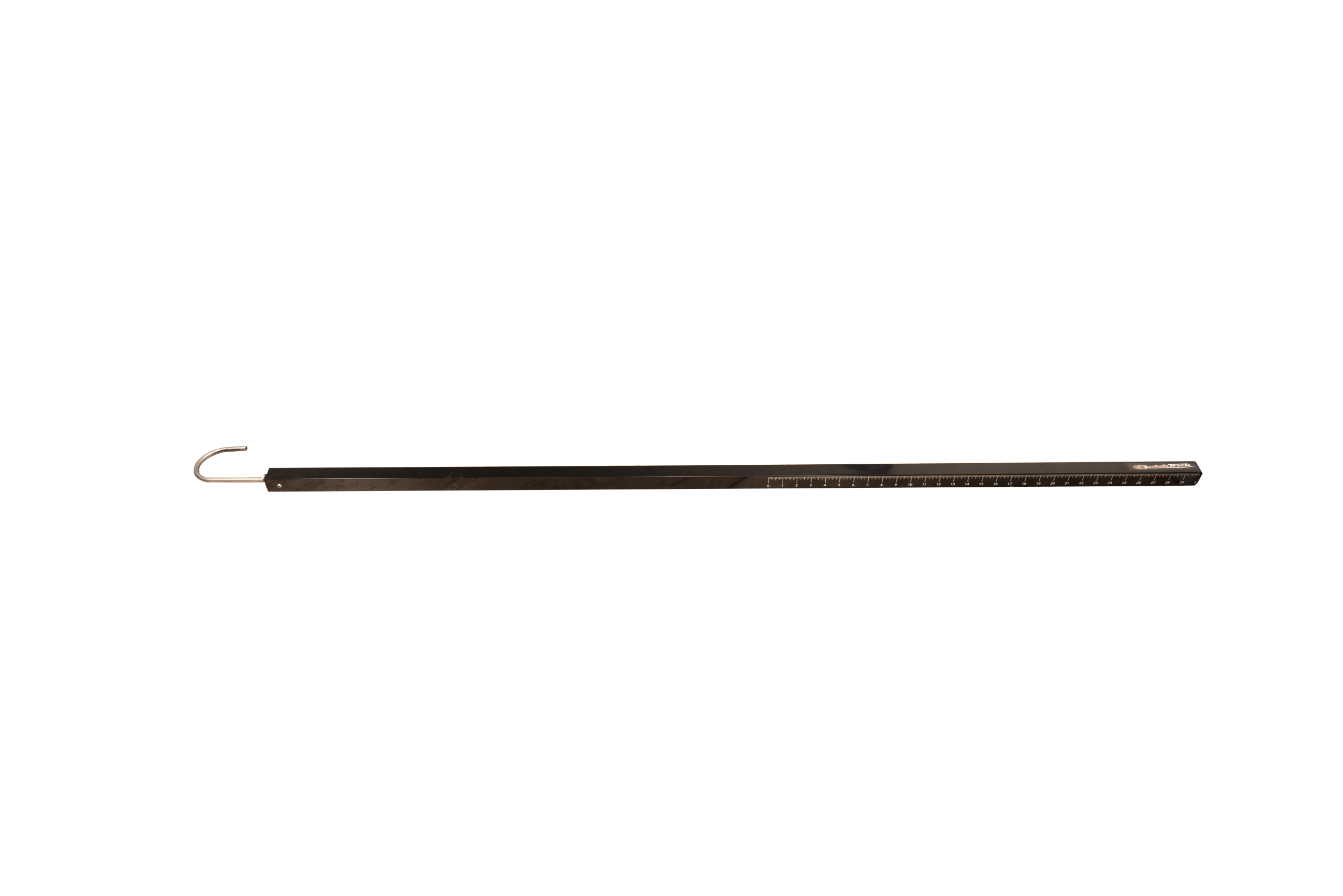

The reinforced J-hook interface provides secure engagement with the coupling kingpin, while the rigid measuring bar maintains a straight reference surface for consistent side-to-side comparison.
All components are designed to withstand repeated daily handling in fleet and trailer service facilities without loss of accuracy or structural integrity.
Technical & Important Notes
- Intended for trailer coupling kingpin lateral alignment verification only
- Does not measure kingpin wear, height, or vertical alignment parameters
- Kingpin should be cleaned of grease and debris prior to measurement for proper tool seating
- Any detected offset should be evaluated against applicable fleet standards and regulatory requirements
- Designed for professional use in fleet, trailer service, and inspection environments
Build Quality & Construction
The Kingpin Coupling Alignment Tool is constructed from heavy-duty components selected for rigidity, stability, and long-term use in commercial service environments.
The reinforced, stainless steel. J-hook interface provides secure engagement with the coupling kingpin, while integrated measurement rulers on both sides of the tool provide a clear, direct reference for side-to-side comparison without requiring additional measuring devices.
All components are designed to withstand repeated daily handling in fleet and trailer service facilities while maintaining a straight, stable measurement reference under real shop conditions.
Why is this tool important . HERE
